Left Drive Frame Assembly
-
HEX NUT (10 MM)11051703001
-
HEX HEAD CAP SCREW 10MMX20MM11051005001
-
HEX HEAD CAP SCREW 8MMX20MM11051010001
-
HEX HEAD CAP SCREW 8MMX16MM11051038001
-
HEX NUT (8 MM)11051704001
-
LOCKWASHER (8 MM)11051770001
-
LOCKWASHER (10 MM)11051771001
-
FLAT WASHER (8.4 MM)11052003001
-
TENSION SPRING / PROMO47052120004
-
SWEEP SHAFT SUPPORT47070186003
-
BEARING ASSY W/CUT PLATE47073832004
-
FLANGETTE - SHAFT DIA. 30MM11052902000
-
HEX HEAD CAP SCREW 8MM X 50MM11051011001
-
HEX HEAD CAP SCREW 10MMX80MM11051046001
-

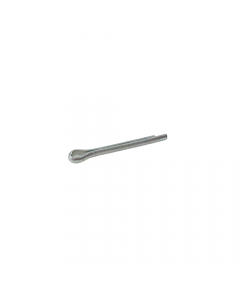

COTTER PIN (3.2MM X 20MM)11051794001
-
SET SCREW HEX SOCKET HEAD 6MMX10MM11052803001
-
FLANGETTE - SHAFT DIA. 25MM11052901000
-
STOP RING (20 MM)11053619001
-
FRAME COUNTER ASSEMBLY47223077004
-
SWEEP GUIDE LEVER47040283003
-
SWEEP SHAFT47041530002
-
SPRING SHAFT (DRIVE FRAME ASSEMBLY)47052123004
-
BUSHING99010107004
-
ANGLE BRACKET (DRIVE FRAME ASSEMBLY)47070169004
-
GEAR TRAIN FRAME (LEFT)47071779001
-
CABLE CHANNEL (30MM X 200MM)47073795004
-

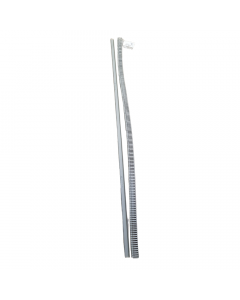

CABLE CHANNEL (30MM X 1800MM)47073797004
-
SWEEP BEARING HOLDER47081958004
-
SWEEP SHAFT BEARING PIECE47081959003
